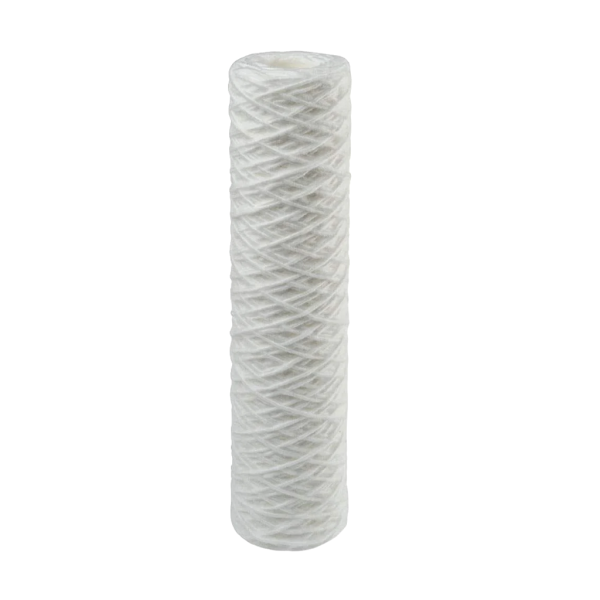

10 Inch 25 Micron Wound Polypropylene Sediment Filter Cartridge
The 10 inch 25 micron wound polypropylene sediment filter cartridge is a high performance water filter designed for the reliable removal of sand, dust, rust and other suspended particles. The evenly wound polypropylene fibre creates a large filtration surface, providing excellent dirt holding capacity and an extended service life.
The filter cartridge is ideal for filtering drinking water, well water and domestic water while protecting pipelines, valves, pumps and downstream water treatment systems from sediment contamination. It is compatible with all standard 10 inch filter housings and is suitable for both residential and commercial applications.
The cartridge is also highly recommended for garden irrigation systems, CS soaker hoses, drip irrigation systems, rainwater harvesting systems and well water applications. By removing fine sediment, it helps protect pressure reducers, irrigation components and soaker hoses from contamination and clogging, ensuring reliable long term operation.
Features:
-
Effective sediment filtration: Reliably removes sand, dust, rust and other suspended particles.
-
Large filtration surface: The evenly wound polypropylene fibre provides excellent dirt holding capacity and a long service life.
-
Filtration rating: 25 microns.
-
Compatibility: Suitable for all standard 10 inch filter housings.
-
Technical Specifications:
- Dimensions: 250 × 61 × 28 mm
- Filter material: Wound polypropylene
- Filtration rating: 1 to 50 microns depending on the selected version
- Maximum operating pressure: 8.0 bar
- Operating temperature: 4 to 45 °C
- Recommended maximum flow rate: Approx. 2,000 l/h
- Service life: Up to 6 months depending on water quality and application
Applications:
- Pre filter for water treatment systems
- Drinking water filtration
- Well water filtration
- Domestic water systems
- Garden irrigation systems
- CS soaker hose irrigation systems
- Rainwater harvesting systems
- Equipment protection filter
- Protection of pumps, valves and pipelines
Benefits:
- Reliably removes sand, dust, rust and suspended particles.
- High dirt holding capacity thanks to the large effective filtration surface.
- Protects pipelines, irrigation systems and connected equipment from sediment deposits.
- Compatible with all standard 10 inch filter housings.
- Quick and easy installation and cartridge replacement.
Important Notes:
- Select the appropriate filtration rating according to the water quality and the required filtration level.
- The actual service life depends on water quality, contamination level and water consumption.
- For consistently high filtration performance, the filter cartridge should be replaced regularly.
- Compatible 10 inch filter housings are also available in our shop.
With the 10 inch 25 micron wound polypropylene sediment filter cartridge, you receive a reliable solution for efficient water filtration. The large filtration surface, excellent dirt holding capacity and dependable filtration performance provide optimal protection for your water supply, garden irrigation systems, CS soaker hoses and connected equipment.
```
