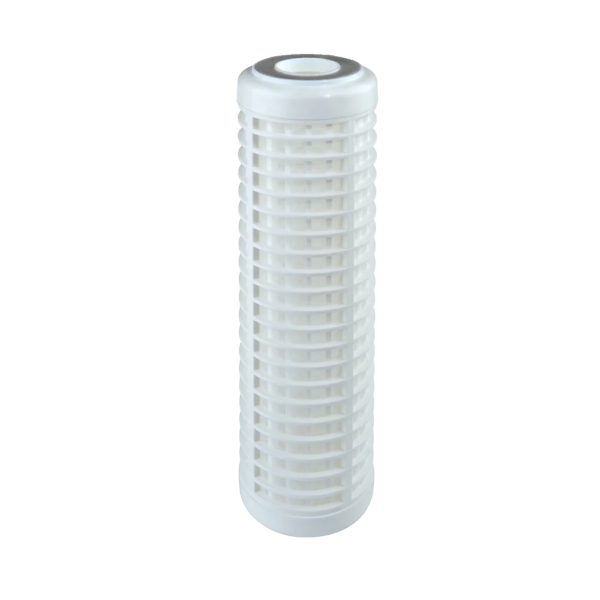

10 Inch 50 Micron Sediment Filter Cartridge with Polyester Mesh
The 10 inch 50 micron sediment filter cartridge with polyester mesh is a high quality and durable pre filter designed for the filtration of drinking water, well water, domestic water and process water. With a filtration rating of 50 microns, it reliably removes sand, rust, dirt particles and other sediments while maintaining a high water flow rate.
The durable polyester mesh offers excellent strength and can be cleaned and reused multiple times. When the filter becomes dirty, it can simply be rinsed under running water and reinstalled. This makes it particularly suitable for applications with high sediment levels while providing an extended service life.
The sediment filter is typically installed as a pre filter at the main water supply, before a water pump or upstream of water treatment systems. It reliably protects pipelines, valves, pumps, water tanks and technical equipment from contamination while extending the service life of the entire system.
It is also ideally suited for garden irrigation systems, CS soaker hoses, drip irrigation systems, rainwater harvesting systems and well water applications. By removing suspended particles, the filter helps protect pressure reducers, irrigation components and soaker hoses from contamination and blockages.
Features:
-
Effective sediment filtration: Removes sand, rust, scale and other particles larger than 50 microns.
-
Washable filter media: The durable polyester mesh can be cleaned under running water and reused multiple times.
-
High flow capacity: Provides reliable filtration with minimal pressure loss.
-
Compatibility: Suitable for all standard 10 inch filter housings.
-
Technical Specifications:
- Filtration rating: 50 microns
- Dimensions: 250 × 70 mm
- Core opening: 30 mm
- Maximum flow rate: Approx. 2,500 l/h at 3 bar
- Maximum water temperature: 80 °C
- Service life: Approximately 12 to 24 months depending on water quality and contamination level
Applications:
- Drinking water filtration
- Well water filtration
- Domestic water systems
- Process water filtration
- Garden irrigation systems
- CS soaker hose irrigation systems
- Rainwater harvesting systems
- Pre filter for water pumps
- Protection of valves and pipelines
- Protection of water tanks, washing machines and technical equipment
Benefits:
- Reliably removes sand, rust and other sediment particles.
- Washable polyester mesh for an extended service life.
- High flow capacity with minimal pressure loss.
- Protects pipelines, pumps, irrigation systems and household appliances from contamination.
- Compatible with all standard 10 inch filter housings.
- Quick and easy installation and filter replacement.
Important Notes:
- The actual service life depends on water quality and the level of contamination.
- The filter cartridge should be inspected regularly and cleaned under running water when necessary.
- A noticeable reduction in water flow indicates that the cartridge should be cleaned or replaced.
With the 10 inch 50 micron sediment filter cartridge with polyester mesh, you can reliably protect your water supply and irrigation system from sand, rust and suspended particles. The washable filter cartridge combines excellent filtration performance with a long service life, making it ideal for drinking water, well water, domestic water systems and garden irrigation with CS soaker hoses.
```
Product safety information
Manufacturer information:
Atlas Filtri s.r.l.
Via Pierobon 32
Limena (Padova), Italien, 35010
atlas@atlasfiltri.com
| Item information |
Value |
| Shipping weight: |
0,20 kg
|
| Item weight: |
0,20 kg
|
