10 Inch Water Filter Housing with Iron Filter and 1/2 Inch Device Connectors

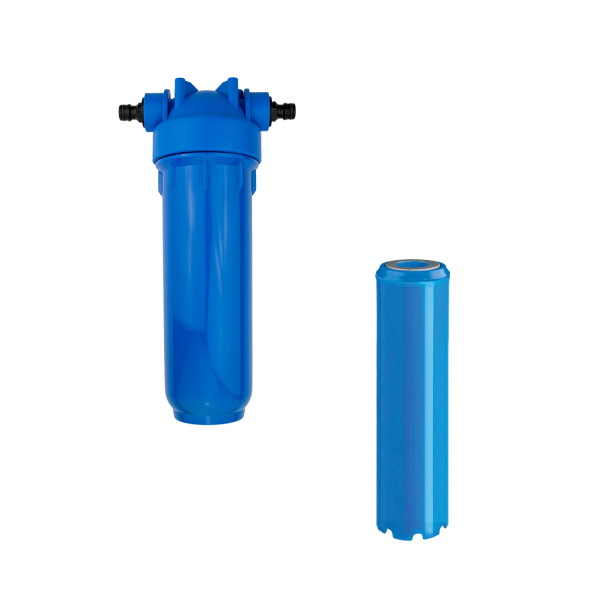

The 10 inch water filter housing with iron filter is a practical complete solution for filtering and treating water with elevated iron levels. The set consists of a robust 10 inch filter housing with a blue filter bowl, two preassembled device connectors for standard 1/2 inch click systems and a compatible 10 inch iron filter cartridge.
The iron filter cartridge is designed to reduce iron, manganese and hydrogen sulfide in water. This can help reduce iron related discoloration, deposits, metallic taste and unpleasant odors. The filter system is particularly suitable for the treatment of well water and domestic water as well as other applications within the specified operating limits.
The filter housing features a 3/4 inch female thread and is already equipped with two device connectors. These are compatible with standard 1/2 inch click systems and allow quick connection to garden hoses, soaker hoses and other irrigation components.
The filter head is made of reinforced polypropylene. The blue PET filter bowl and EPDM O ring provide a robust and reliable construction. An integrated air release valve made of stainless steel and EPDM facilitates commissioning and maintenance of the filter system.
The included iron filter cartridge is filled with a mixture of pyrolusite and quartz sand granules of different grain sizes. The filter medium helps reduce dissolved iron and can also contribute to the reduction of manganese and hydrogen sulfide.
Filter Housing Features:
-
Universal 10 inch size: Suitable for compatible 10 inch filter cartridges with flat seals.
-
Flexible connection options: 3/4 inch female thread with two preassembled device connectors.
-
Compatible with 1/2 inch click systems: Easy connection to garden hoses, soaker hoses and irrigation components.
-
Robust construction: Filter head made of reinforced polypropylene and blue PET filter bowl.
-
Reliable sealing: EPDM O ring.
-
Easy maintenance: Air release valve made of stainless steel and EPDM.
Iron Filter Cartridge Features:
-
Iron reduction: Helps reduce elevated iron levels in water.
-
Manganese reduction: Can help reduce manganese levels in water.
-
Hydrogen sulfide reduction: Can help reduce unpleasant odors in water.
-
Filter medium: Mixture of pyrolusite and quartz sand granules of different grain sizes.
-
Improved water quality: Can help reduce iron related discoloration, deposits, metallic taste and unpleasant odors.
Technical Data of the Filter Housing:
- Filter size: 10 inch
- Suitable for: 10 inch filter cartridges with flat seals
- Filter housing connection: 3/4 inch female thread
- Device connectors: 2 pieces, preassembled
- Device connector compatibility: standard 1/2 inch click system
- Dimensions: 325 × 122 × 107 mm, height × width × depth
- Maximum operating pressure: 8.6 bar
- Temperature range: 4 to 45 °C
- Filter head: reinforced polypropylene
- Filter bowl: PET, blue
- O ring: EPDM
- Air release valve: stainless steel and EPDM
Technical Data of the Iron Filter Cartridge:
- Filter size: 10 inch
- Dimensions: 248 × 70 × 26 mm
- Service life: approx. 6 months or up to approx. 3,000 liters, depending on water quality and flow rate
- Recommended maximum flow rate: approx. 1,000 l/h at 3 bar
- Maximum water temperature: 45 °C
Specified Operating Limits of the Iron Filter Cartridge:
- Iron: maximum 4.0 mg/l
- Manganese: maximum 0.1 mg/l
- Sulfite: maximum 0.9 mg/l
- Oxide: maximum 4.0 mg/l
- Chloride: maximum 4.8 mg/l
- Silicates: maximum 35.0 mg/l
Applications:
- Well water
- Domestic water supply
- Irrigation systems
- Pre filtration
- Equipment protection
- Reduction of iron in water
- Reduction of iron related deposits and discoloration
- Water treatment within the specified operating limits
Advantages:
- Complete set consisting of a filter housing and compatible iron filter cartridge.
- Reduces iron, manganese and hydrogen sulfide in water.
- Can help reduce rust deposits and iron related discoloration.
- Can help reduce metallic taste and unpleasant odors.
- Easy connection thanks to preassembled device connectors.
- Compatible with standard 1/2 inch click systems.
- Filter cartridge can be easily replaced when required.
- The filter housing can be used with compatible 10 inch filter cartridges with flat seals.
Important Information:
- The included iron filter cartridge is suitable for the water filter housing with blue filter bowl included in this set.
- When the filter cartridge is used for the first time, fine granule dust may be released due to transportation. Allow the water to run until it comes out clear.
- If additional filtration stages are used, they should only be installed after the iron filter cartridge has been thoroughly flushed until the water runs clear.
- The actual service life of the filter cartridge depends on water quality, iron content, flow rate and the amount of water used.
- If the water quality is unknown, a water analysis is recommended before use.
- The specified maximum operating values and conditions must be observed.
The 10 inch water filter housing with iron filter and 1/2 inch device connectors provides a practical complete solution for reducing iron, manganese and hydrogen sulfide. Thanks to the preassembled connectors, the filter system can be easily integrated into existing irrigation and domestic water systems and supports reliable water filtration within the intended areas of application.
Product safety information
Manufacturer information:
Atlas Filtri s.r.l.
Via Pierobon 32
Limena (Padova), Italien, 35010
atlas@atlasfiltri.com
Responsible person:
CS Bewässerungssysteme GmbH
In der Aue 29
Hessen
Reichelsheim, Deutschland, 64385
info@cs-wss.com
https://cs-wss.com/
| Item information |
Value |
| Shipping weight: |
2,56 kg
|
| Item weight: |
2,38 kg
|
